Yunyang

Fire Alarm Yun Yang

Jual Fire Alarm Yun Yang

Toko Alarm | 0888-996-0888 | Supplier Fire Alarm Dengan Merk Yun Yang Di Indonesia, Harga Fire Alarm Yun Yang Yang Kompetitif. FIRE ALARM Yun Yang  FOR SAFETY.
Kami Menjual Fire Alarm Yun Yang. Produk Layanan Kami Antara Lain :

• Design installasi/desain pemasangan fire alarm system
• Master control fire alarm System atau MCFA Yun Yang
• kontrol panel fire alarm system
• Smoke detector atau detektor asap rokok/kebakaran
• Heat detector atau detektor panas
• Flame Detector atau detektor percikan api
• Gas detector atau detektor gas
• Fire Alarm System Konvensional
• Fire Alarm System semi addresable
• Fire Alarm System Full Addresable
• Alarm Bell, indicating lamp fire alarm
• Manual push button, manual call point
• Announciator Fire alarm Panel
• Modul fire alarm, terminal box fire alarm
• break glass, fire alarm independent,
• remote indicating lamp
•  manual call point with base
• headset telephone/handset telephon fire alarm

Yun Yang Fire Safety Ex Taiwan

Fire alarm yun yang Ex Taiwan telah lama di kenal oleh masyarakat indonesia sebagai produk yang memiliki kwalitas bagus dan juga memiliki fungsi yang sangat menarik, Yun Yang telah memproduksi berbagai macam panel alarm baik yang konvensional, mcfa addressable dan intelligent system. Yunyang memberikan banyak pilihan dan type sehingga user sulit untuk beralih ke produk lain. Berikut produk yang master control panel fire alarm buatan yun yang ex taiwan:

Konvensional sistem dan Loop :

• YF-1 Fire Alarm Control Panel(ABS) 5L, 10L, 15L dan 20L
• YF-1 Fire Alarm Control Panel(ROCKER SWITCH) 5L, 10L, 15L dan 20L
• YF-1 Fire Alarm Control Panel(PUSH BUTTON SWITCH) 5L, 10L, 15L dan 20L
• YF-4 Fire Alarm Control Panel(ABS) 5L dan 10L
• YF-3 Fire Alarm Control Panel(ABS) 1L, 2L, 4L, 5L, dan 8L
• YF-3 Fire Alarm Control Panel 2L, 4L, 5L, 8L, 16L, dan 24L
• Fire Alarm Annunciator Panel 5L, 10L dan 30L Fire Alarm Annunciator Panel

Konvensional Panel Control Fire Alarm Yunyang

Addressable sistem dan Loop:

• YFR-1 Addressable Fire Alarm Control Panel
• YFR-1 Addressable Fire Alarm Control Panel(ABS)
• YFR-1 Addressable Fire Alarm Control Panel with 17” Touch Panel Dimension
• Addressable Annunicator

Addressable MCFA Yunyang

Intelligent sistem:

• YFPR-3A Intelligent Fire Alarm Control Panel
• YFPR-3 Intelligent Fire Alarm Control Panel
• YFPR-3(G) Intelligent Fire Alarm Control Panel (Graphic)

Intelligent Master Control Fire Alarm Yunyang

Master control panel fire alarm Yun yang

Panel alarm/mcfa adalah pusat kontrol dalam sistem fire alarm yang terdiri dari sistem konvensional, addressable dan intelligent system. Fire alarm di dukung dengan announciator (Optional). Master control fire alarm akan menampilkan display lokasi yang sedang terjadi fire atau trouble. selain itu MCFA dapat di hubungkan ke lift, fan, power supply dan audio dalam sebuah bangunan.

Spesifikasi MCFA Yun yang Konvensional (conventional)

• Integrated circuit indicators: each circuit is equipped with monitoring functions on fire, circuit break and short circuit, respectively.
• The fire alarm circuit and the indicator circuit are able to detect circuit break and offer protection against short circuit.
• The system always keeps close watch over battery charging and the voltage of the stand-by battery to ensure that the panel functions well in all circumstances to prevent any disaster.
• Each circuit is equipped with a testing button to ensure the normal function of initiating circuits.
• Operations are controlled by a key to prevent false alarms caused by accidental touch.
• Digital error detection for voltage source: whenever a voltage error is detected by the system, an error alarm will sound and an indicator will light on.
• Two-stage alarm delay function to prevent false alarms: When the detector activates for the first time, the system will automatically reset the detector. If another signal is received in a short period of time after that, the system will then confirm that there is a fire.

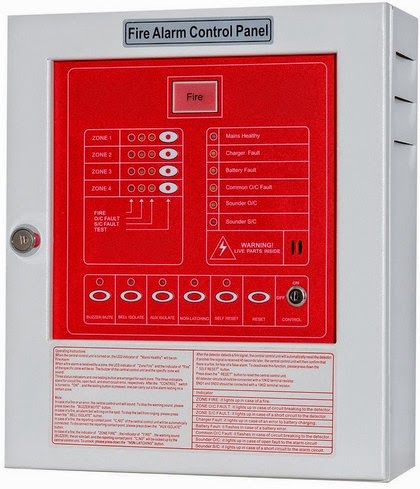

Konvensional Master Control Fire Alarm Yunyang

Konvensional MCFA Fire Alarm Yunyang

 Additional product:

• Self-Reset" mode and "Non Self-Reset" mode are available for operators to set if they want the panel to automatically reset the fire alarm signals after the fire extinction or not
• Separate control switches for main audio, local audio, indicator, and relay output.
• There is an error indicator above each switch.
• Digital electronic switches are used for dust proofing and a long service life.
• Equipped with many function indicators: alarm, power supply, and circuit connection fault
• Build-in buzzer with dust proofing and long service life
• Warning announcement is always made automatically with loud sound
• Many zone circuit configurations are available: 1L, 2L, 4L, 5L, 8L, 12L, 16L, 20L, 24L

Konvensional Panel MCFA Fire Alarm Yunyang.jpg

Spesifikasi MCFA Yun yang Addressable

• English LCD screen (240×128 or 240 characters)
• LCD backlight energy-saving protection function
• Two-wire Circuits for supper long transmission distance (up to 2km between the control panel and modules)
• The data memory device can store 2000 historical data records permanently. (The device in graphic systems can be expandable up to 20 million records)
• Composed sound alarm function (broadcast in human voice to annunciate with operators)
• Sound guidance function (while operating)
• Abnormal temperature protection function (I/O modules overloading)
• SLCs, IDCs are equipped with insulation false inspection function
• Protection against lightening surge
• I/O modules miswiring protection equipments are available
• I/O modules are equipped with isolated segment function
• A table to review all I/O modules’ statuses is available for easier operation
• Addresses and interlocks can be checked in a table in the LCD screen
• Weekly automatic test function
• Repeat alarm function
• Two-stage fire alarm delay function
• Standby battery with saving electricity function

The Control Panel is able to expand easily

• Expandable with 17” color touch screen, multiple functions for customers to select: remote control or monitor system software
• (Touch screen) Disaster Prevention Center Control PanelFire Graphic Control System or Riser Diagram Touch Screen Fire Alarm Display PanelIt is equipped with multiple permission levels, individual Password Management, Fire Diagram Inquiry, Parents-Child Diagram, DiagramPrinting, Real-time Fire Diagram Popup, History Data Inquiry,Operation Data Enquiry, Situation Simulation, Desktop Picture Setting,many Diagram Formats supported, and Database etc.
• Communication Speed: when a new alarm announcement activates, theinspection time is less than 500ms.
  Up to 2,048 addresses for addressable devices
• Serial relay interface: up to 2,040 contacts are available
• Available to connect with 8 addressable fire alarm control panels to form a large fire monitoring
  Up to 16 addressable annunciators can be connected
  Equipped with 3 sets of RS-485 communication ports to connect with a central PC’s monitoring and control system
  With a real-time printer (optional)
• Disaster Prevention Center Control Panel is available to integrate (optional)

Addressable Master Control Fire Alarm Yunyang

Intelligent Fire Alarm Control Panel

• Spesifikasi Yum Yang YFPR 20L  :
• English LCD Screen:
• The Operation Board has the 128 x 64 (or 64 English characters) LCD Screen designed with text-guided interface to display on-site statuses correctly. It’s easy and simple to read and operate.
• Capacitive Touch Switches:
• Every touch with super bright LED and obvious switch design for easy recognizing to prevent conventional switch contact aging, poor contact problems
• Jog Switch:
• The fire alarm control panel uses one dial jog to process all function settings, for common sense operating without complicated steps
• Fire Alarm Control Panel with Interlock Function:
• Under I/O module mode, directly setting interlock method from the fire alarm control panel
• Auto-test Function:
• Select disconnection or activation test to test for each zone
• Connectable with TYY LED, LCD, Graphic Annunciators:
• Connection to synchronic annunicator, LCD annunicator or monitor graphic annunicator, display with floor plan for alarm zone
• Historical Alarm Data:
• Alarm history can record up to 500 items, available for relative staffs’ inspect and survey.
• Two Stage Alarm Delay Function:
• After detecting fire, the system will automatically reset detectors to process second stage alarm delay inspect. It reduces false alarms caused by general wire interrupting, promoting the reliability of the fire alarm control panel.
• LED display for Zone Circuit Statuses:
• Each zone board module is with 5 zone states display. Each zone is with LED 3 status display (ordinary: off, disconnection: flashing, activate: on)
• Sound Guidance Function:
• System with operating guidance voice for abnormal state, to give management staffs a clear understanding of the abnormal state.
• Real-time Printing Function (optional) :
• The system can print instantly alert messages like loops’ activation, disconnection etc.
• Protection against Lightening Surge:
• Power supply module with protection against lightening surge to avoid central computer damage caused by high voltage or power surge
• Abnormal Voltage Inspection:
• With abnormal voltage display function, the system can show high and low voltage
• Modular design:
• The system has modular design and inputs / outputs with independent terminal module. If there is a problem on site, users do not have to remove external wires while still easily replace error boards so it can improve the efficiency of maintenance and inspection.
• SLC Failure Monitor Screen:
• Users can base on the control panel’ fault communication monitor screen to determine whether zone light module and I/O control transmission module work normally or not
• Addressable Devices’ External Connection Function:
• Connected to the communication module adopted the two-wire transmission can be connected with addressable modules or addressable detectors using SLC branch. Feedback message can be displayed by address point.
• Relay Output Function:
• Serial report output available to connect to TYY voice evacuation system, eliminating report cable wiring work
• Attractive Appearance:
• Zone display screen adopts heat resistant plastic material; exterior flow line is simple and elegant, with easy recognized labels in zone panel for buildings, floors, areas etc.
• Connection with up to 15 Intelligent Fire Alarm Annunciator Panels

Heat Detector Rate of Rise (ROR) Yun Yang

Detektor panas ROR/ rate of rise dirancang untuk mendeteksi suhu yang cepat atau peningkatan yang. Jika suhu lingkungan naik dengan cepat , udara di ruang mengembang dan menekan lembaran logam untuk menghubungkan titik kontak dan memberikan peringatan terlebih dahulu . Ketika perubahan suhu lebih lambat terjadi , udara diperluas lolos melalui lubang untuk menjaga keseimbangan tekanan sehingga alarm kesalahan tidak pernah terjadi.

Detector Fire Alarm Yunyang

Alarm Bell Yun Yang

Alarm Bell Fire Alarm Yunyang

Bel alarm kebakaran merupakan peralatan yang dikontrol oleh terminal penerima api atau repeater dan suara peringatan sebagai musibah kebakaran terjadi.Cara bermotor diambil di konsumsi rendah saat ini , untuk mengurangi beban untuk output daya dari receiver terminal. Bel alarm kebakaran merupakan peralatan yang dikontrol oleh api terminal penerima atau repeater dan suara peringatan sebagai kebakaran terjadi
